Variable Set to ASCII Char

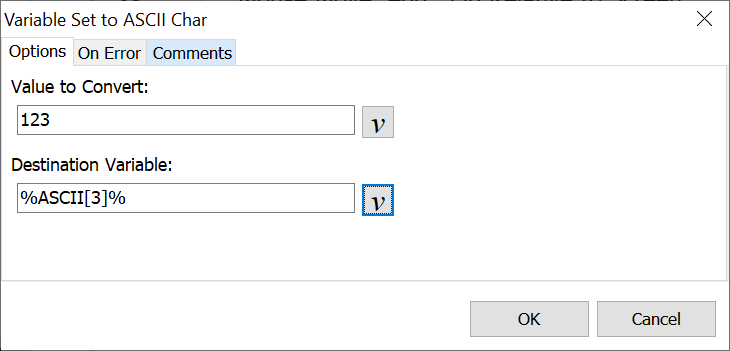

The Variable Set to ASCII Char command converts a numeric value into its ASCII character equivalent. For example the number 65 represents the letter A. Or in the example below, the number 123 represents the character {. The range of values allowed is from 0 to 255.

Insert the numeric value to be converted to an ASCII character. Or insert a variable that contains the numeric value to be converted.

The ASCII character that matches the numeric value is saved to a text string variable. Enter the variable name or click on the Variables button to select a variable for use.

For convenience, the list below displays the numeric value and the ASCII character represented by that number. Values 0 - 31 are non-printable characters, such as line feeds, tabs, etc. Extended ASCII codes 128 - 255 may be found with a quick online search.

#	Description	#	Char	#	Char	#	Char
0	Null char	32	Space	64	@	96	`
1	Start of Heading	33	!	65	A	97	a
2	Start of Text	34	"	66	B	98	b
3	End of Text	35	#	67	C	99	c
4	End of Transmission	36	$	68	D	100	d
5	Enquiry	37	%	69	E	101	e
6	Acknowledgment	38	&	70	F	102	f
7	Bell	39	'	71	G	103	g
8	Back Space	40	(	72	H	104	h
9	Horizontal Tab	41	)	73	I	105	i
10	Line Feed	42	*	74	J	106	j
11	Vertical Tab	43	+	75	K	107	k
12	Form Feed	44	,	76	L	108	l
13	Carriage Return	45	-	77	M	109	m
14	Shift Out	46	.	78	N	110	n
15	Shift In	47	/	79	O	111	o
16	Data Line Escape	48	0	80	P	112	p
17	Device Control 1	49	1	81	Q	113	q
18	Device Control 2	50	2	82	R	114	r
19	Device Control 3	51	3	83	S	115	s
20	Device Control 4	52	4	84	T	116	t
21	Negative Acknowledgement	53	5	85	U	117	u
22	Synchronous Idle	54	6	86	V	118	v
23	End of Transmission Block	55	7	87	W	119	w
24	Cancel	56	8	88	X	120	x
25	End of Medium	57	9	89	Y	121	y
26	Substitute	58	:	90	Z	122	z
27	Escape	59	;	91	[	123	{
28	File Separator	60	<	92	\	124	\|
29	Group Separator	61	=	93	]	125	}
30	Record Separator	62	>	94	^	126	~
31	Unit Separator	63	?	95	_	127	Delete
