Text Box Update

Use this command to update a Text Box being displayed in the macro with a new value, further instructions, etc. Also use this function to display and update the number of passes through a Repeat Loop or a Text File Process.

üNote: The Update Textbox command is to only be used with the Timed floating box or end of macro or Floating Box until "Close Box" command or end of macro options.

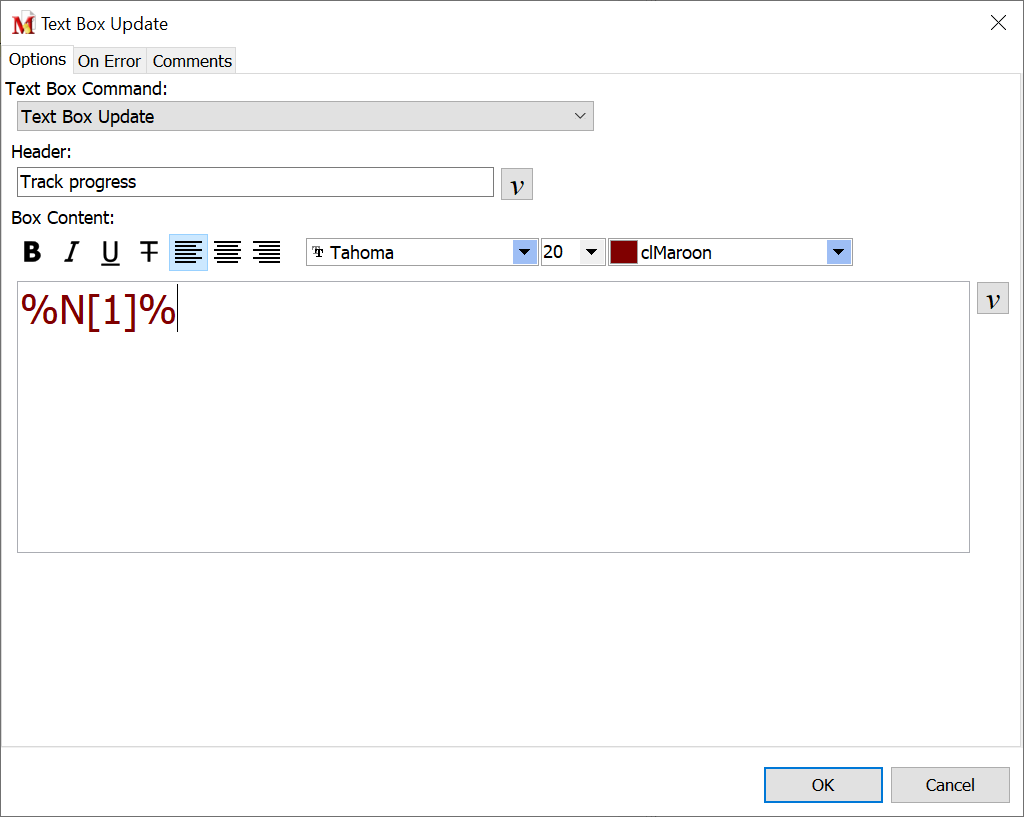

Script Editor > Expand Dialogs Category > Update Textbox

Header

Insert the name of the Text Box to be updated during the playback of the macro. The Header name must match exactly with the header of the Text Box previously defined in the macro script.

Box Content

Enter the information to be displayed or updated in the Text Box into the Box Content field. This text will replace any information that was previously displayed in the Text Box.
